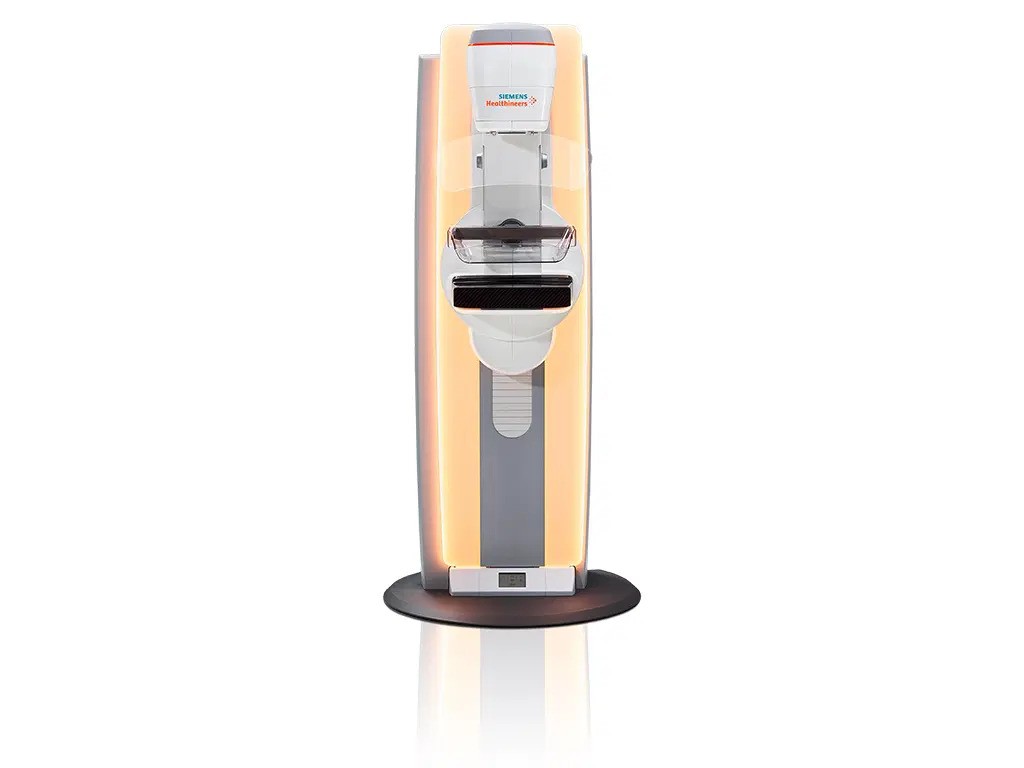

MAMMOMAT Revelation enables not only 3D visualization of the whole breast with its market-unique 50° Wide-Angle Technology, but also comes with an outstanding solution package.
- Go for quality: It’s not only about precision in cancer detection, it’s also about continuously supporting customers.
- Aim for the right dose: It’s not only about lowest dose, it’s also about highest image quality.
- Focus on all patient needs: It’s not only about comfort and speed, it’s also about certainty.
Benefits
Breast Health 360° approach
Dose saving
50 Wide-Angle Tomosynthesis
Improved patient experience
With MAMMOMAT Revelation our customers not only get world-class equipment, but also benefit from our Breast Health 360° approach. We take care of our customers in every step of the way: from examination workflow to services over the entire product lifecycle.
Technical Details
Tomosynthesis
Dose
Biopsy and CEM
Patient experience
Workflow
Service
Learn more about tomosynthesis
Image impression
5 different options for contrast and image sharpness for FFDM and synthesized 2D.
2 options for contrast and image sharpness for tomosynthesis projections.
Angular range and sweep
50° wide angle (+/- 25°)
Tomosynthesis projections
25 low-dose projections
Synthetic imaging
Synthesized 2D mammographic imaging (Insight 2D) and unique, rotating synthesized
3D mammographic imaging (Insight 3D)
Reconstruction technology
Unique, multiple algorithms, providing superior image quality in both contrast and detail
Detector
Static (not rotating); no binning
Low dose technology
PRIME technology: software solution to replace anti-scatter grid for up to 30%1 dose savings in FFDM
Dose levels
OpDose – five different exposure parameters for optimized patient dose
1-view tomo scan
1 view tomo scan can further reduce dose by 15%4
Insight 2D
Insight 2D eliminates the need for an additional FFDM
image and thereby lowers the overall dose exposure3
Learn more about breast biopsy
Compression
Personalized; automated compression to increase comfort
Tomo-guided targeting
50° wide angle for highest depth resolution5
Target accuracy
+/- 1 mm
Specimen scanner
Integrated InSpect specimen scanner on same detector at no additional cost
Mounting
Mountable without having to remove the detector cover or any other parts
Needle holder movement
Motorized to X, Y, and Z directions
Filter for CEM examinations
(TiCEM)
Titanium
Learn more about TiCEM
Automatic movement
Automatically move gantry from one projection position to another with single touch of a button
Ambient lighting
MoodLight luminated design function available for better patient experience
Compression paddles
Rounded edges and soft polymer to enhance patient experience
Compression
Personalized; automated compression to increase comfort
Compression speed
Unique SoftSpeed – paddle slows its movement as soon as it touches the breast
Patient breathing
Complete free-breathing acquisitions
Breast Health Moods
Wallpapers create a relaxing and positive atmosphere
Automatic movement
Automatically move gantry from one projection position to another with single touch of a button
System start-up time
< 5 minutes
Swivel range
+180° to -180°, motorized isocentric rotation with preselectable rotation angle
Breast density measurements (Option)
Volumetric measurement is automatically calculated and visible at AWS after the first view
Adjustable table height
66 cm (26“) to 154.5 cm (60.8“)
Detector specifications
Amorphous Selenium (aSe); 24 cm × 30 cm (9.5“ × 12“)
Detector cooling
No wait time
Calibration
Once every 3 months
